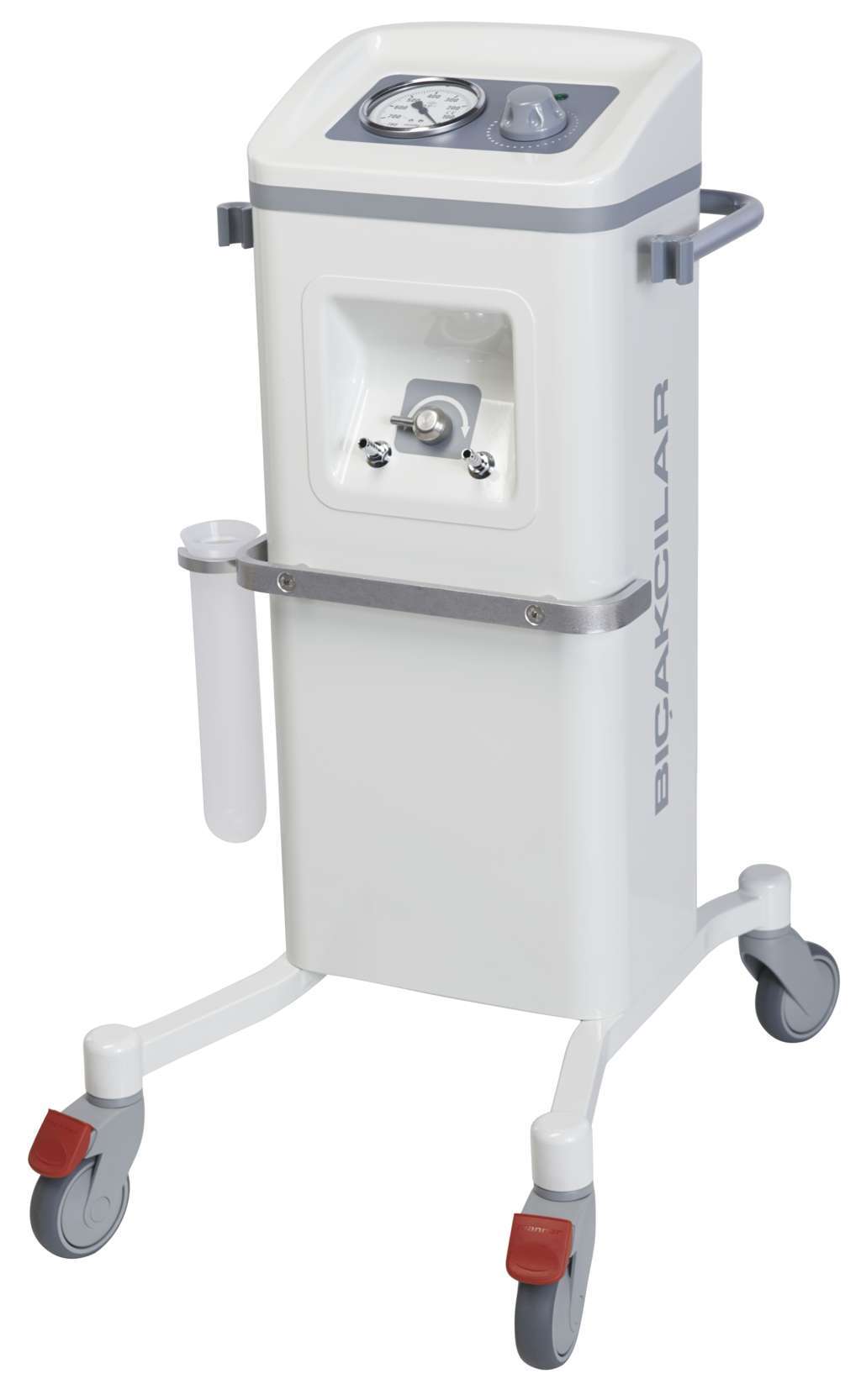

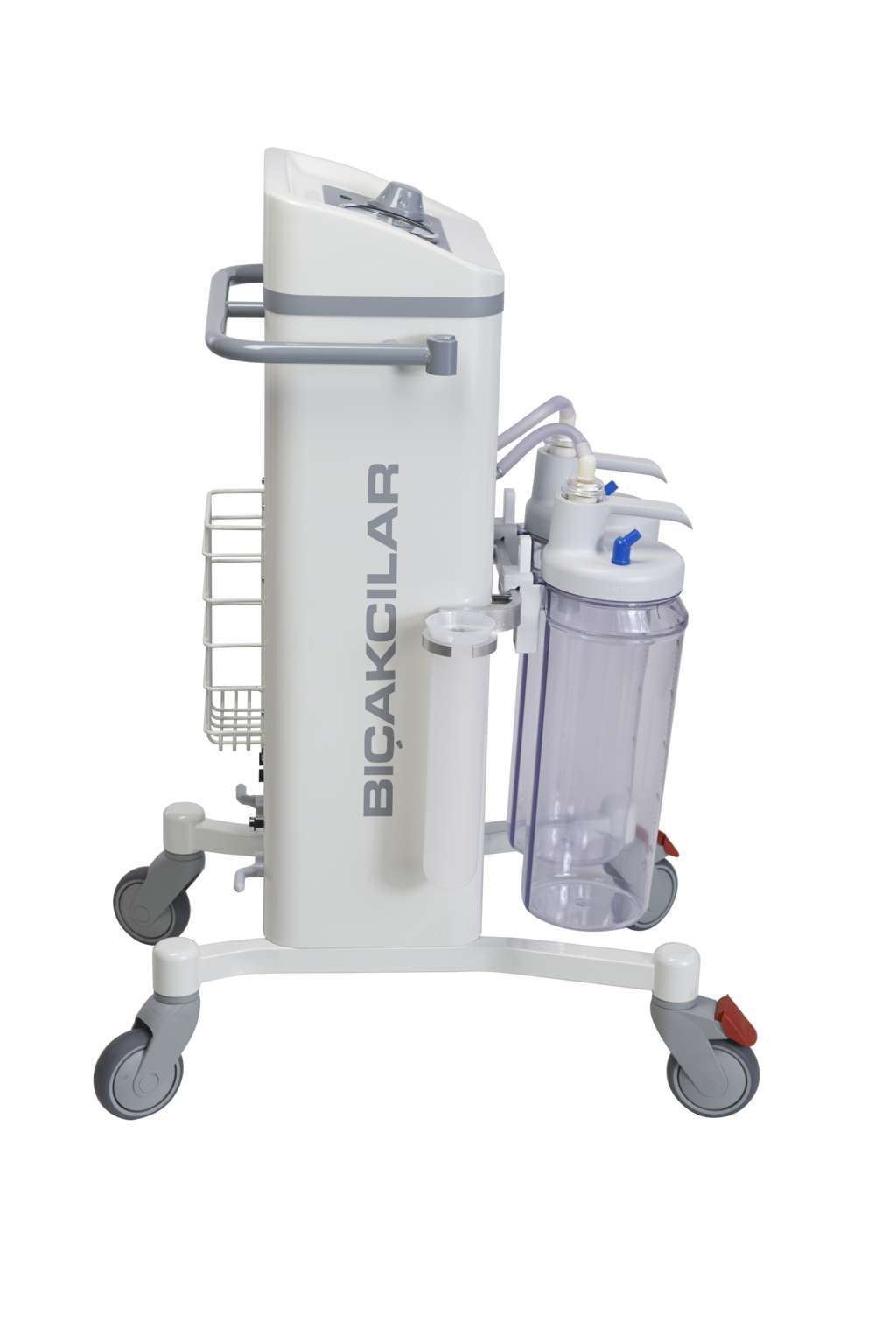

Vaculine Maxi M4E 500

example graphic example graphic example graphic example graphic example graphic

Intended for use in surgical medical procedures

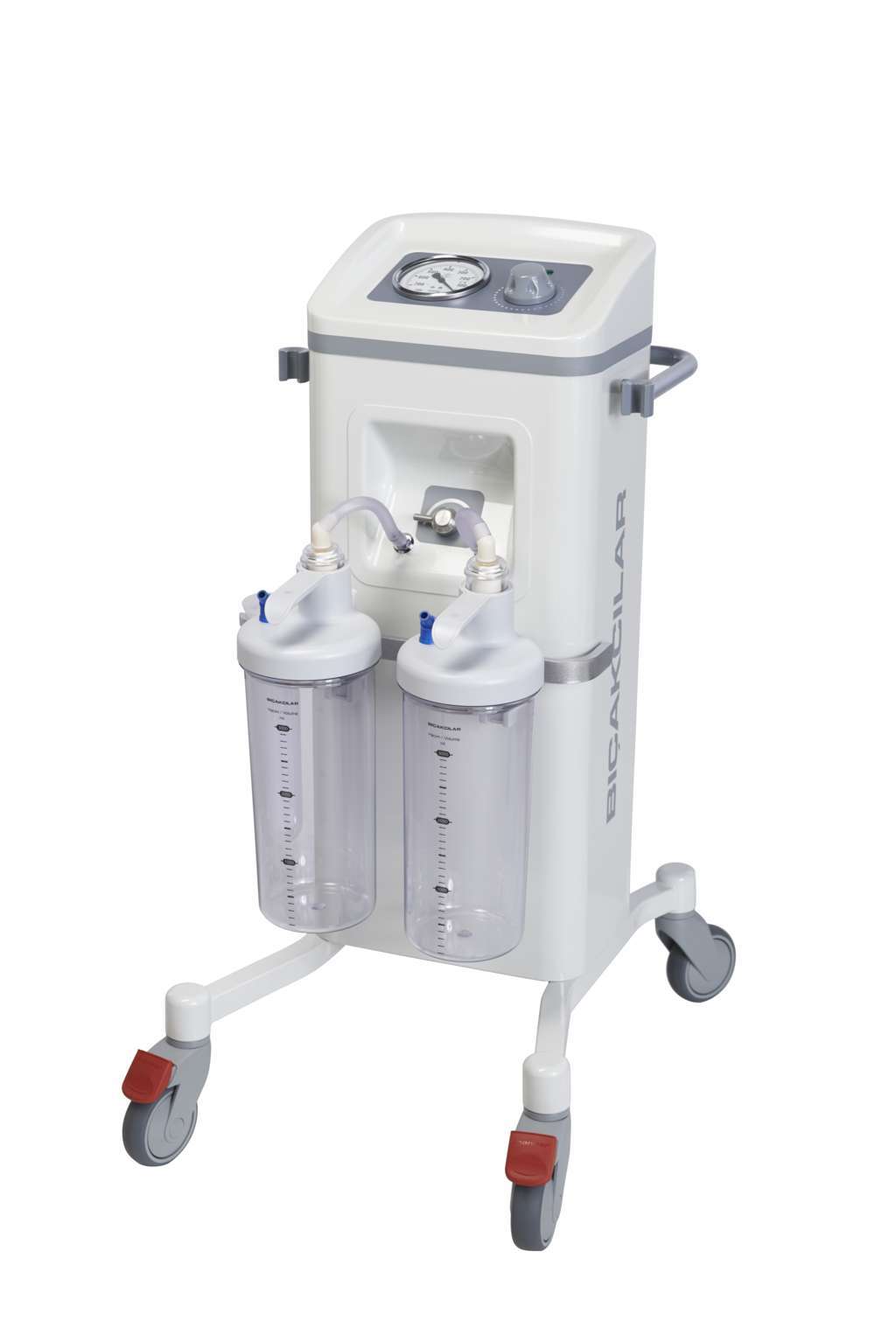

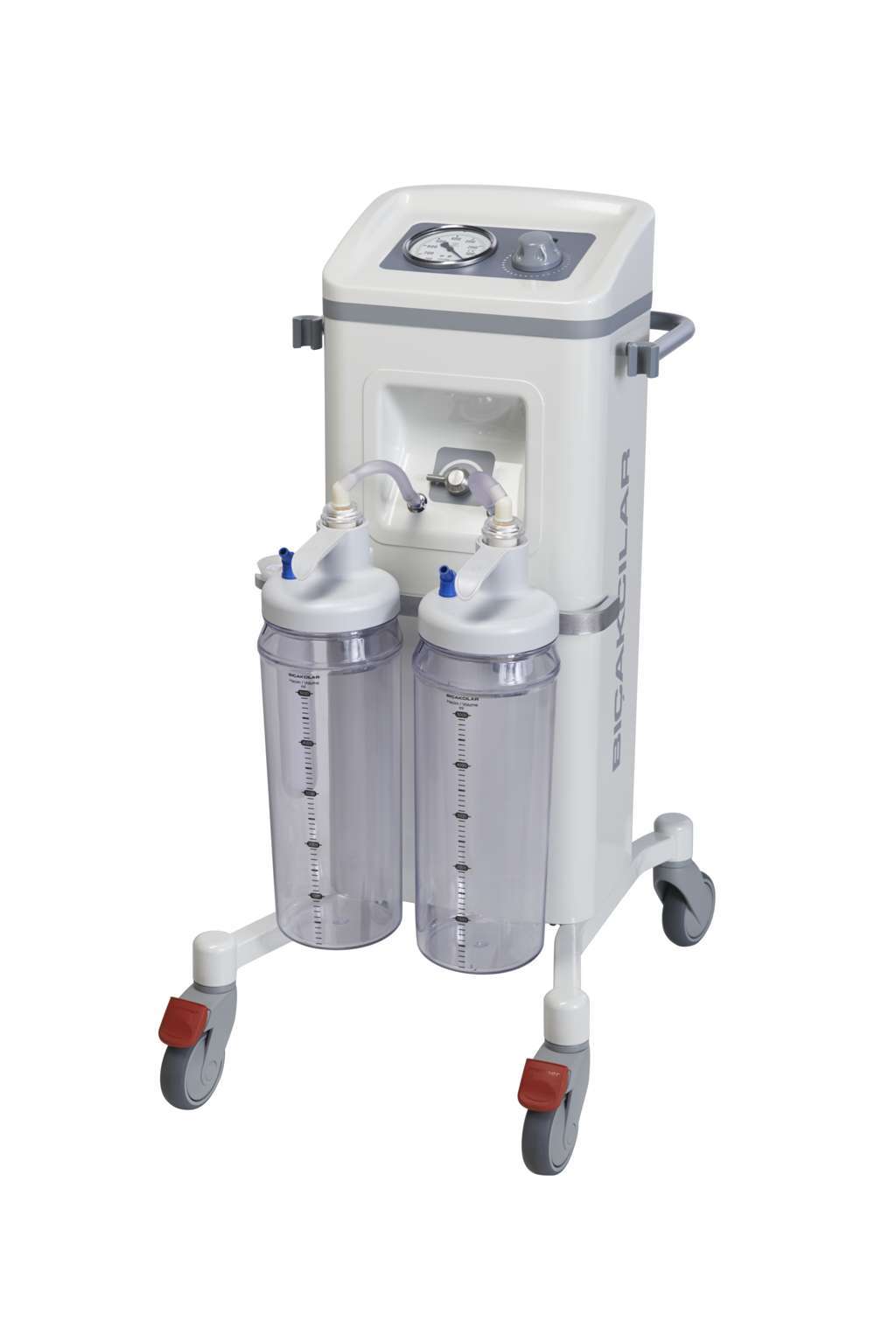

  • 2, 3 and 5 L single/double bottle combinations
  • Suitable for use with canister systems
  • 0-680/710 mmHg vacuum range (at see level)
  • Vacuum diversion knob to selct canister
  • Vacuum adjust knob and 100 mm gauge
  • Output: 50 L/min
  • One suction bag remains functional while other is beging discarded
  • Ergonomic control panel design with 25 degree angle
  • Fluid aspiration into the pump: Floating valve, Hydrophobic bacterial air filter: Tight seal lid with clear view of the filter, enabling prompt filter change. Bacteria filter allows free air-flow, but prevents fluid overflow, protecting the pump

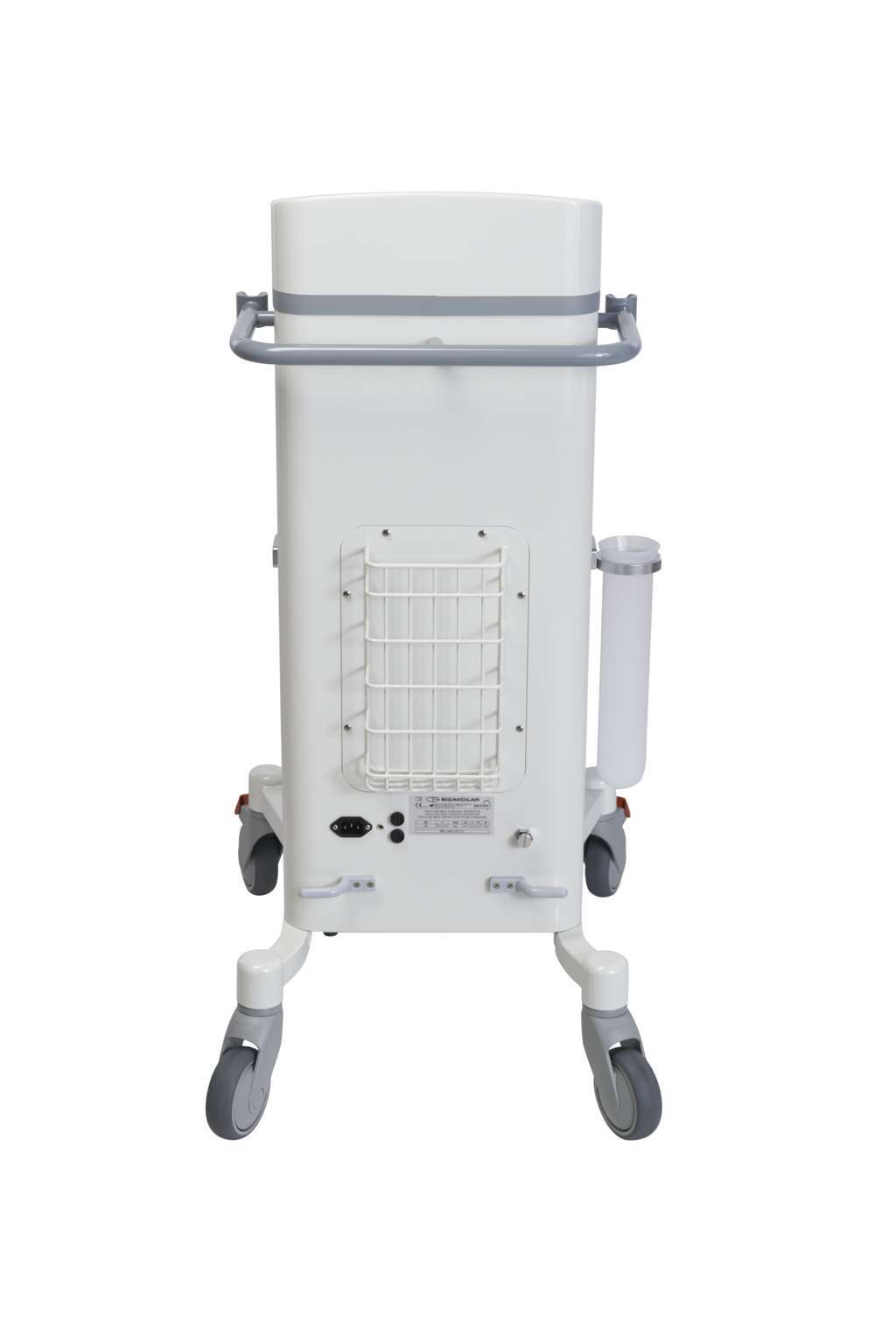

  • Basket in the rear for spare suction catheters
  • Rinse solution reseptacle and two seperate suction line holders on the sides
  • Polycarbonate canisters compatible with steam sterilization
  • Operation status indication lamp
  • Silent, dry vacuum pump; Design features to prevent airborn contamination in operating rooms and clean rooms. No requirement for periodic lubrication and maintenence
  • Motor speed: 1400 rpm
  • Sturdy body construct with durable polyester dye
  • Mobile
  • Four swiveling castors, two with brakes
  • Rated voltage: 230 V
  • Rated current: 50/60 Hz
  • Power consumption: 0.9A, 145 W
  • Dimensions: 485 x 650 x 985 mm
  • Weight: 35 kg
  • Packing dimensions: 630 x 630 x 1080 mm
